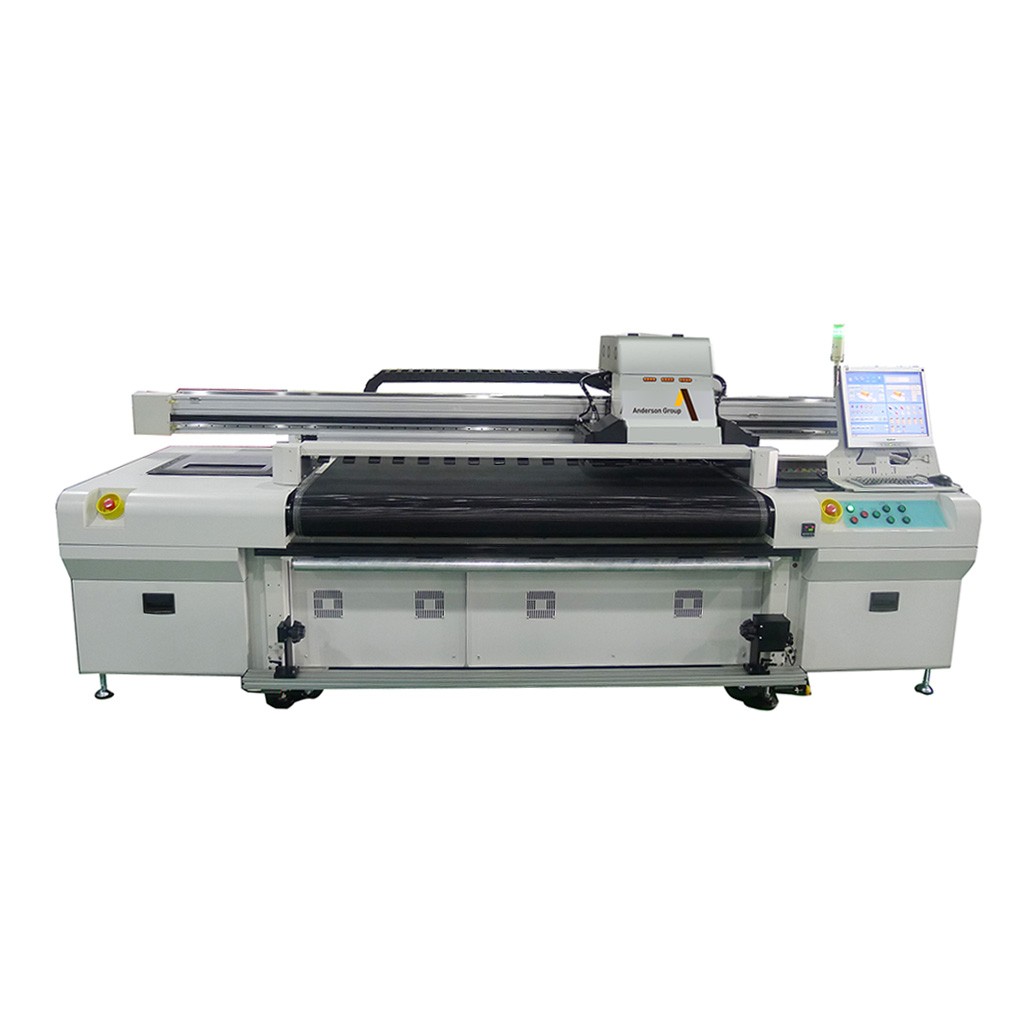

AJet
UV数位喷绘机械
AJet
恩德集团先进之复合式UV数字喷绘机，具备高质量喷绘 /高精度低滑动误差的材料输送网带设计，高分辨率1440dpi、 6色墨水和两组特别色提供高质量的喷绘功能。另外，AJet系列使用之UV环保墨水不产出对环境有害之化学物质，兼具高质量与环境保护的双重要求。 ● 软质卷材与硬质片材兼备的复合式UV数位喷绘机 ● 双白喷头可凸显白色喷绘的色调，提高彩色喷绘的饱和度 ● 独特彩-白-彩和彩-白-黑的三层同时迭色功能，使透明材料的喷绘有更广泛的应用效果 ● 白-白-彩的三层同时迭色功能喷印出更加多元化的3D木纹拼花和油画喷绘 ● 高精度低滑动误差的材料输送网带可使材料平整固定于台面上 ● 光油喷印功能可针对某一区块进行喷绘，进而凸显局部的喷绘效果 ● 喷头自动维护系统整合墨水与清洁液的喷墨头管线，使喷嘴保持上佳状态 ● 高度自动调节系统让操作者可依材料高度轻易调整喷头模块 ● 喷绘素材之高度达65mm，宽幅达1650mm
技术规范
技术规范
请与恩德各地分公司及区域代表联络，取得相关及新的技术信息。
| Basic configuration | AJet | AJet Plus |
|---|---|---|
| Print Heads |
Piezo Drop-On-Demand Inkjet Head 5 colors 10 Heads 7 Colors 8 Heads (2 heads more for Varnish optional) |
Piezo Drop-On-Demand Inkjet Head Konica Minolta 1024 Print Heads 7 Colors 8 Heads |
| Drop Volume | 14pl | 14pl |
| Print Color | K, C, M, Y, Lc, Lm, W (Varnish optional) | K, C, M, Y, Lc, Lm, W (Varnish optional) |
| Print Resolution (dpi) |
360 x 720 720 x 720 1440 x 720 |
360 x 720 720 x 720 1440 x 720 |
| Print Speed, m2/hr (ft2/hr) |
6/7 colors 5 colors 7 colors 5 colors |
6/7 colors 9.2 (100) 4 colors 21(230) 6/7 colors 7.1 (75) 4 colors 14.2 (150) |
| Up to m2/hr (ft2/hr) |
14 (150) 25 (301) 7 (75) 14 (150) |
6/7 colors 9.2 (100) 4 colors 21(230) 6/7 colors 7.1 (75) 4 colors 14.2 (150) |
| Print Area |
(Sheet) 1650 mm x 3300 mm (65 inch x 130 inch) (Roll) width 1650 mm (65 inch) |
(Sheet) 1650 mm x 3300 mm (65 inch x 130 inch) (Roll) width 1650 mm (65 inch) |
| Max. Thickness | 50mm (1.97 inch) | 50mm (1.97 inch) |
| Ink Type | UV Curable ink | UV Curable ink |
| Media Handling |
Auto media size match vacuum belt system Build in roll material feeding and take up system Material support frame for rigid panel |
Auto media size match vacuum belt system Build in roll material feeding and take up system Material support frame for rigid panel |
| Media Type | Foam Board, Acrylic sheet, Glass, Wood, Aluminium, Vynil, Tile, etc. | Foam Board, Acrylic sheet, Glass, Wood, Aluminium, Vynil, Tile, etc. |
| Interface | Ethernet 10/100 Base T | Ethernet 10/100 Base T |
| RIP application | ONYX Production House for AJet | ONYX Production House for AJet |
| Dimension |
3800 mm x 1250 mm x 1750 mm (12.46'x 4.01'x 5.74'); 3800 mm x 3400 mm x 1750 mm (include panel support frame) |
3800 mm x 1250 mm x 1750 mm (12.46'x4.01'x 5.74'); 3800 mm x 3400 mm x 1750 mm (12.46’x11.15’x 5.74’) (include panel support frame) |
| Weight |
800Kg (1760 lbs), 950Kg (2090 lbs) - include panel support frame |
800Kg (1760 lbs), 950Kg (2090 lbs) - include panel support frame |
| Package List | AJet Printer system, Maintenance Tools, Suck Blower, UV ink (each color 1L), Cleaner (1L), Operation Manual |
AJet Printer system, Maintenance Tools, Suck Blower, UV ink (each color 1L), Cleaner (1L), Operation Manua |
| Operation Environment | Temperature: 15-30° C (59-86° F), Humidity: 30-70% RH | Temperature: 15-30° C (59-86° F), Humidity: 30-70% RH |
| Power Requirement | 200-240 VAC, 50/60 Hz, 1 Phase | 6KVA 1 Phase, AC 200V/220V/380V switchable by local voltage |
| Air Source | 5kg/cm2, 10 L/min, Clean Dry Air | 5kg/cm2, 10 L/min, Clean Dry Air |
| Warranty | Printer: 1 Year | Printer: 1 Year |
